Non-Destructive Hardness mapping is now possible.

muraR Surface Hardness Variation Scanner

Request Info View Brochure
muraR Surface Hardness Variation Scanner

Features

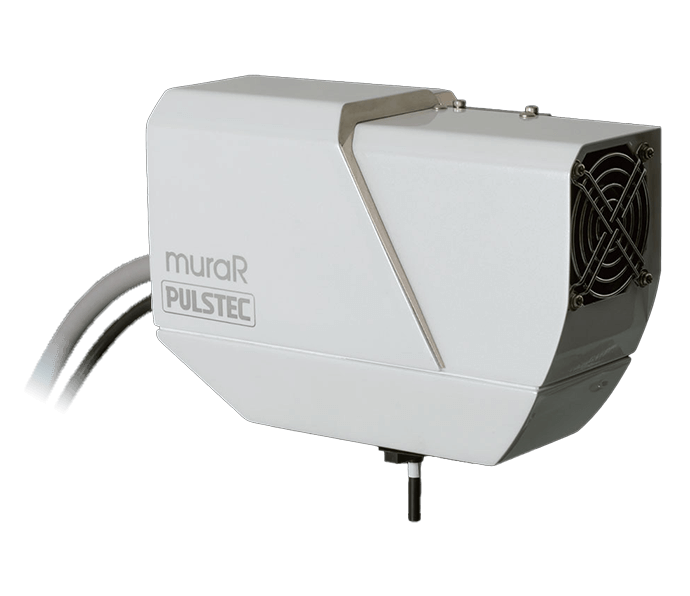

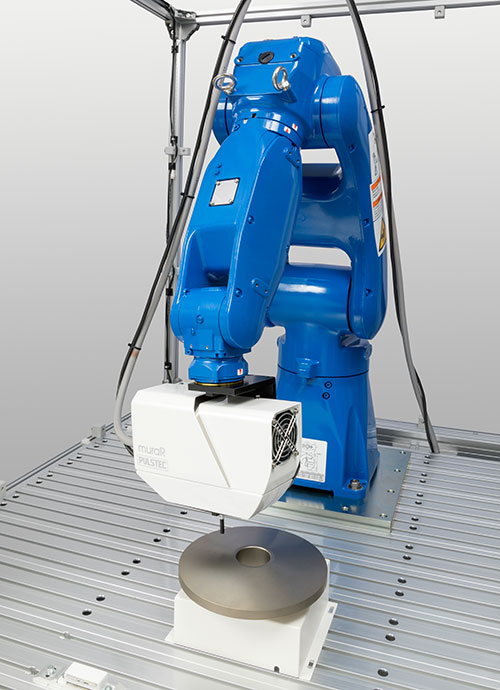

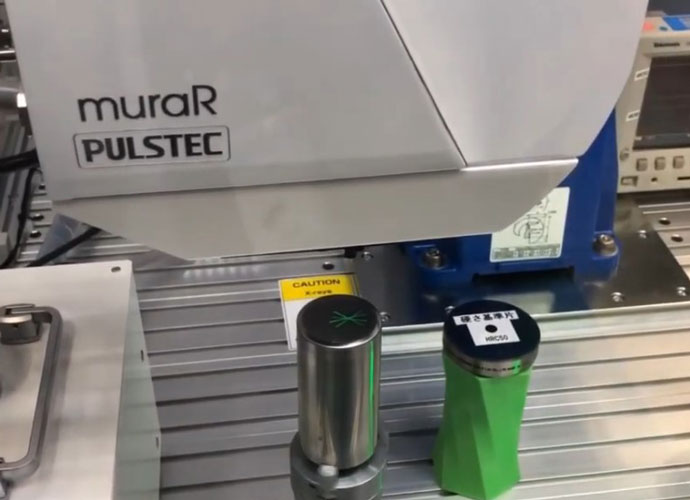

muraR robot arm
green circles
  • Nondestructive Uses safe and reliable non-destructive inspection methods. Convert width of X-ray diffraction profile data to voltage.
  • Non-contact With better accuracy, this machine can determine measurements and hardness without ever making contact with parts.
  • Fast measurement speed This high-speed scanning of hardness variation of surface steel can quickly scan an area of 2″x 2″ in merely 120 seconds!
  • In-line Inspection Examines your parts to identify corrosion, over machining or hardness variations that could potentially result in failure of your parts.
  • Easy Setup Set up is very simple! The unit is compact and easy to move around. Parts easily come together to form the entire piece.
  • Auto mapping The auto scan function performs by stage or robot. Color mapping displays hardness of variation, showing grind layers.

Benefits

This is the only equipment that can evaluate hardness variation non-destructively. It calibrates the FWHM obtained from X-ray diffraction and hardness reference specimens, and maps the obtained FWHM as hardness. It scans the surface at high speed in combination with XY stage, rotation stage or robot.

green circles

Request a sample measurement

Request a Sample Measurement

Specifications

muraR Surface Hardness Variation Scanner
green circles
  • Measurement method
    • X-ray scans surface and detects variation
    • Result is displayed as mapping
  • Size(mm) and Weight(kg)

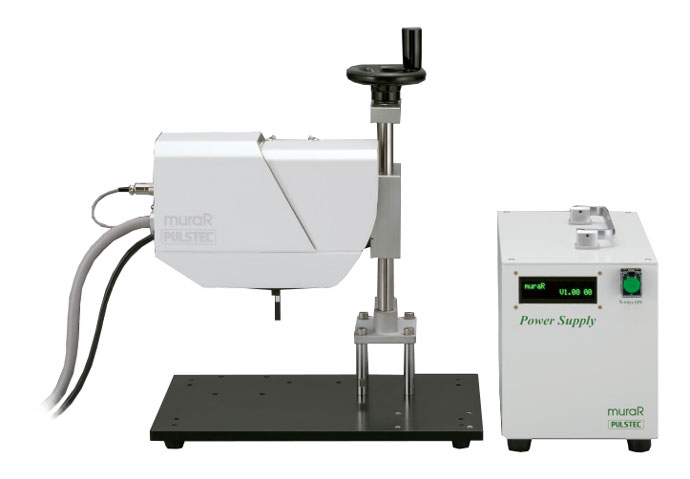

    • W140xL204xH157mm; 3.8kg (not including marker)
  • Measurement items
    • FWHM variation
  • Output
    • Analogue output 0-10V
  • Material
    • Only steel
  • Power supply
    • W140xL252XH193mm; 6.2kg

Applications

  • Hardness mapping on Pulley, Precision roller and Liner Guide.
  • Offers an evaluation for Machining Burn or Grinding Burn.
  • An inspection of hardening layer and quenching variation
  • After heat treatment, mapping images allow for full check.
muraR Surface Hardness Variation Scanner equipment is use
green circles

Resources

Technical Documents
muraR Surface Hardness Variation Scanner
Hardness Variation Scanner
muraR Non-contact Surface Hardness Variation Scanner[pdf]

Learn More
Videos
muraR technics ~Spiral scanning of cylindrical roller bearing~
Hardness Variation Scanner
muraR technics ~Spiral scanning of cylindrical roller bearing~

Learn More
Videos

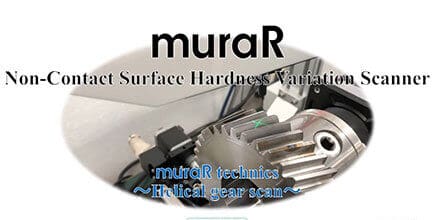

muraR technics ~Helical gear scan~
Hardness Variation Scanner
muraR technics ~Helical gear scan~

Learn More
Videos
Non-Contact Surface Hardness Variation Scanner (muraR)
Hardness Variation Scanner
Non-Contact Surface Hardness Variation Scanner (muraR)

Learn More

Speak with an Equipment Testing Expert

We know our technology is leading the industry. Allow us to show you the benefits of working with Pulstec. Contact us today for a free demonstration on-line or at your facility.

Ask for a Demo Request Info
