The fastest and easiest way to check single crystal orientation

s-Laue Flexible Single Crystal Orientation System

Request Info
s-Laue Single Crystal Orientation System

Get Started With a Free Demo

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Name*

Features & Benefits

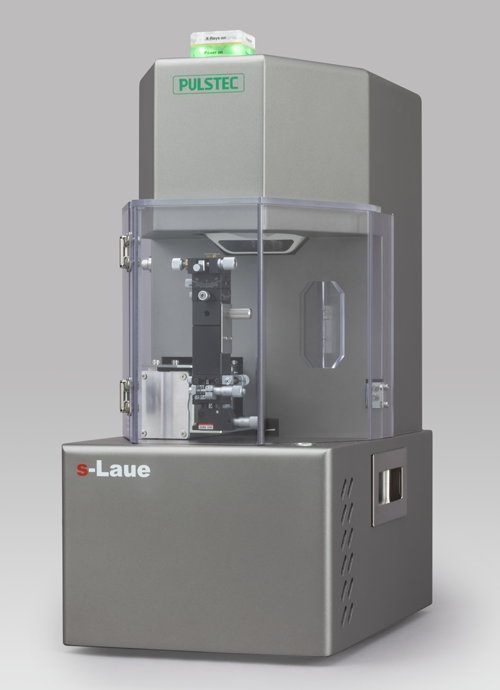

s-Laue Single Crystal Orientation System
green circles
  • Fast Measurements The s-Laue can quickly acquire images of single crystal materials. You can generally see most results within 80 seconds.
  • Easy to Use The s-Laue’s camera is small and easy to handle, and the X-rays are incident vertically downward to make setting the sample as simple as possible.
  • Integrated Air Cooling This single crystal orientation system features an air-cooled X-ray generator and a high-sensitivity detector. You won’t ever have to worry about the system overheating!
  • Compact & Portable Design The s-Laue is extremely lightweight and compact, making it ideal for most workspaces.
  • High Precision You can achieve precise alignment using the system’s integrated microscope.

How It Works

Using our s-Laue single crystal orientation system is easy and only takes four steps:

  1. Use the CCD camera to set your sample.
  2. Use the software to start the X-ray irradiation and detection process.
  3. Calculate the crystal’s orientation by fitting the Laue spots.
green circles

Bringing Simplicity to Manufacturing

Non-Destructive, Non-Contact

Fast

Intuitive

Precise Data

Compact & Portable

Safe to Use

Request a sample measurement

Our Sales Engineer will contact you within 24 hours to schedule your free, virtual demo and process your measurement request. We offer up to three complimentary measurements.

Request a Sample Measurement

Specifications

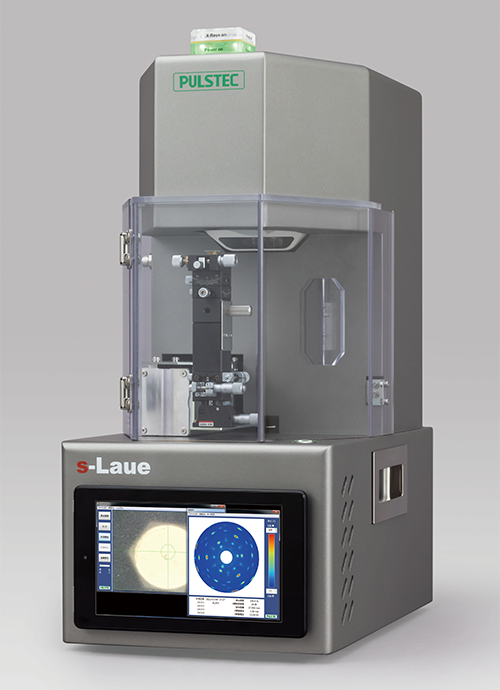

s-Laue Single Crystal Orientation System with tablet
green circles
  • Measurement method
    • Laue (Back Reflection)
  • X-ray Source
    • W (Tungsten)
  • Voltage
    • 30kV (1.6mA)
  • Power
    • 100 AC, 240V, 50/60 Hz
  • Power Consumption
    • 150W Maximum
  • Incident Angle
    • 0 Degree
  • Irradiation Spot
    • φ0.8mm (Standard Collimator)
  • Sample Distance
    • 27mm
  • Measurement Time
    • 80 Seconds
  • Sample Stage
    • 6 Axis (Θ Tan./Rad. X/Y/Z)
  • Diameter
    • 224mm (Width) x 414mm (Depth x 480mm (Height)
  • Weight
    • 24 kg

Applications

  • Measuring principal plane orientation.
  • Checking and adjusting cutting orientation.
  • Evaluating crystallinity.
  • Analyzing processing-related crystal growth.
s-Laue Single Crystal Orientation System
green circles

FAQs

No. The s-Laue is designed for in-lab use only. Our m-Laue single crystal orientation is engineered for inline quality control and field measurements.

Yes! The s-Laue maintains low X-ray power.

Please contact our Sales Engineer to learn more. Pricing will vary based on additional accessories, the location the equipment is being shipped to, and more.

Yes. While the s-Laue is not designed for field measurements, it’s still compact and lightweight, making it ideal for any workspace.

Our standard collimator provides an irradiation spot of φ0.8 mm.

The s-Laue can analyze smaller, crystalline samples.

Pulstec can ship products to any country.

Yes! We offer equipment rental options for customers in the United States and Canada.

Yes! Our Sales Engineers offer product training, ongoing troubleshooting and diagnostics, and part replacements as needed. Spare parts are covered by a 12-month warranty.

Our standard lead time is 90 days after purchase order acceptance. We always start our process with a free virtual demo and three sample measurements to ensure our product can meet your application requirements.

Get Started With Your Free Demo

At Pulstec, we believe in transparency. Before you purchase a product, we’ll ensure it’s the solution you need. Request your free demonstration today.

Request a Demo
